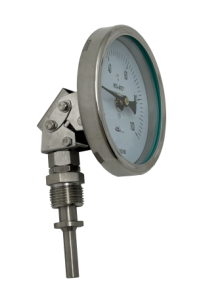

WSS Adjustable Dial Angle Ferrule Thread Bimetallic Temperature Gauge
WSS Adjustable Angle Bimetallic Temperature Gauge is applicable for temperature monitoring among all kinds of industrial fields：
- ✦ Steelworks
- ✦ Rolling Mill
- ✦ Water Cooling
- ✦ Heat Exchanger
- ✦ Smelting Furnace
- ✦ Evaporator
- ✦ Heat Pump
- ✦ Mixing Tank
WSS Bimetallic Thermometer can apply universal dial connection so that dial orientation is adjustable at will. The structure ensures observation of instrument reading among complex process system. Process connection of ferrule thread allows for movable fixing position up and down for a small distance, facilitate tightness, anti-vibration and adjustment of optimal dial position.
Temperature sensing range from -80℃~500℃
High display precision 1.5%FS
IP65 ingress protection excellent tightness
Robust stainless steel and glass housing
Legible 60/100/150mm dial indicator
Ferrule thread process connection
Suitable for kinds of harsh condition
Adjustable stem-dial connection design
| Item name | Adjustable Dial Angle Ferrule Thread Bimetallic Temperature Gauge |
| Model | WSS |
| Measuring range | -80~500℃ |
| Dial size |
Φ 60, Φ 100, Φ 150
|
| Stem diameter |
Φ 6, Φ 8, Φ 10, Φ 12
|
| Dial connection | Adjustable angle; Axial; Radial;135° (Obtuse angle); |
| Accuracy | 1.5%FS |
| Ambient temperature | -40~85℃ |
| Ingress protection | IP65 |
| Process connection | Movable ferrule thread; Thread; Flange; No connecting fitting, Customized |
| Wetted-part material | SS304/316L, Hastelloy C alloy, Customized |
| For more information about WSS Series Adjustable Dial Bimetallic Temperature Gauge please feel free to get in touch with us. | |
