Steam is often considered as workhorse across various industries. In food production, steam is utilized for cooking, drying and cleaning. The chemical industry employs steam for all kinds of reactions and processes, while pharmaceuticals use it for sterilization and maintaining temperature and humidity controlled environment. In power plants, steam is generated from boiler system and used to drive turbines that generate electricity. Steam pipelines are therefore critical components in various industrial processes, serving as conduits for transporting steam to different sections of facility. To ensure operational safety and efficiency, it is essential to monitor and control the conditions within these pipelines. This is where instrumentation comes into play for effective management of steam systems.
Instrumentation in steam pipelines could serve several measuring objects that is crucial for operation within safe and efficient limits, including process pressure, temperature and flow rate:
Pressure transmitter: Pressure measuring device can be applied to monitor and regulate pressure within pipeline, giving real-time feedback to help operators maintain optimal pressure level. Continuous readings provided by the transmitter enable proactive maintenance and timely troubleshooting to safeguard steam transportation. It should be noted that since steam temperature are usually higher than permissible limit of general transmitter, measures like radiation elements and siphon are recommended for protection of instrument components. Structures with ex-proof treatment are preferable if operating site is flammable and explosive .

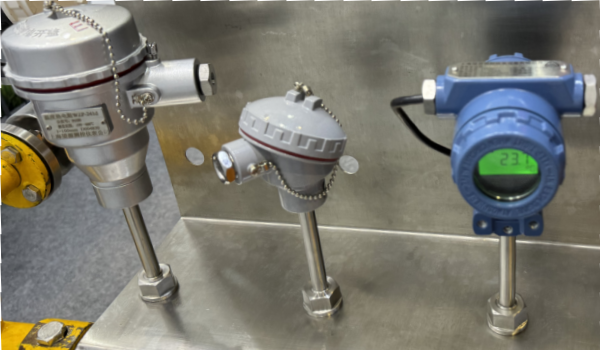

Temperature transmitter: Temperature control is of importance in steam processes, it directly affects the quality and efficiency of steam production and usage. Operators can adjust boiler settings according to temperature measurement to keep correct temperature preventing condensation problem. Additionally, accurate temperature readings can be vital to make sure of effective steam sterilization processes in food and pharmaceutical. Overheated steam is generally less than 600℃ in practical, therefore Pt100 would be suitable sensing element for steam measurement.
Flow meter: Steam flow rate inside pipeline can be detect by gas measuring flow meter. It is a useful parameter for balance of supply & demand and energy management, optimizing steam consumption and reducing waste. Potential leaks or blockages in the system can be identified in a timely manner through discrepancies in flow rate. Vortex flow meter adopting principle of karman vortex street is the ideal instrument for volumetric flow rate control of different kinds of steam and gas. Similarly, for overheated steam application it’s important to confirm meter’s allowable operating pressure and temperature cater to actual condition.
The integration of pressure, temperature and flow instruments into steam pipeline systems allows for comprehensive process monitoring and control. Modern industrial facilities often employ advanced control systems that utilize data from these instruments to automate processes and enhance operational efficiency. Like a steam system can automatically adjust the boiler output based on real-time pressure and temperature readings, not only improves energy efficiency but also extends the lifespan of equipment by preventing conditions that could lead to wear and tear. Moreover, the data collected from these instruments can be analyzed to identify trends and patterns, enabling predictive maintenance strategies. By anticipating potential issues before they escalate, facilities can minimize downtime and reduce maintenance costs.
As technology advances, smart instrumentation and data analytics will further revolutionize the management of steam pipelines, paving the route to more sustainable industrial processes. Shanghai Wangyuan is an over 20 years instrumentation manufacturer experienced and keeping up with trends. Don’t hesitate to contact us if you have any other concerns or requirements regarding steam pipeline instrumentation.
